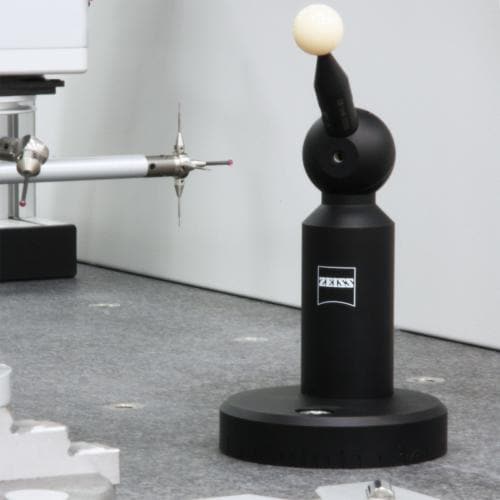

Complete reference sphere kit, DK 30, 214 mm, M10 base

Product Type

Reference Set

Length (L)

214.0 mm

Ø Sphere (DK)

30.0 mm

Machine

DuraMax

Stylus Tip Material

Ceramic

Material

Stainl. St.

Application

Tactile

Reference Sphere Holder (RSH)

• lenght: 214 mm
• connection thread: M6
• mounting hardware for tables with M10 thread

Reference Sphere

• diameter sphere: DK = 30 mm
• diameter shaft: DS = 7 mm
• diameter base element: DG = 18 mm
• length: L = 85 mm
• connection thread: M6
• material of sphere: ceramic
• Surface porosity: less than µ20
• Sphericity: less than µ0.13

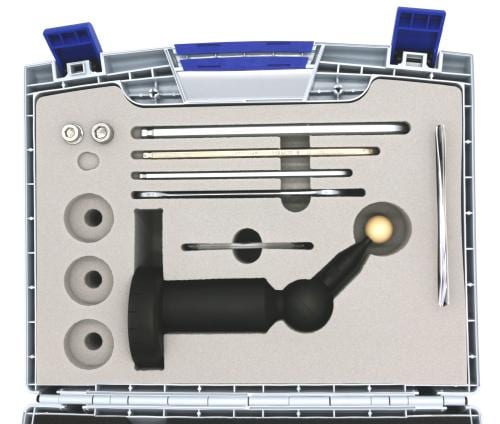

Includes carry case and tools Includes calibraton certificate
