CMM Connection Elements

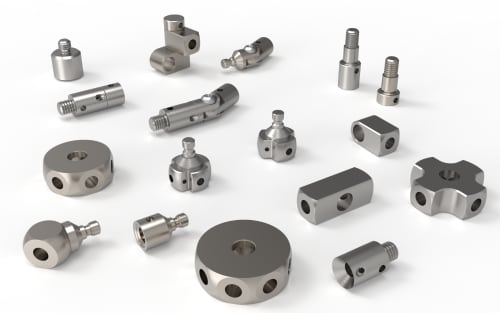

Connecting elements are indispensable for the construction of probe systems. ZEISS offers products for all applications, from cubes, angle and star elements to screws and counterweights. Here you will find everything you need for a highly effective probe system. All products of the ZEISS connecting element family are technically coordinated and scalable. Here too, ZEISS guarantees the highest manufacturing quality and therefore maximum performance.
626107-6280-120
- Product Type
- Star Element
- Length (L)
- 10.0 mm
- Angle 1 (W1)
- 90.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 7.0 mm
- Ø Shaft (DS)
- 2.0 mm
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 4.0 g
$ 140.00
Inquire on Delivery
Live Chat Now
626105-6280-030
- Product Type
- Rotary Elements
- Length (L)
- 30.0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 11.33 g
- Connection Type Out
- M5
$ 150.00
626107-6022-226
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 90.0 °
- Angle 2 (W2)
- 10.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
$ 270.00
Inquire on Delivery
Live Chat Now
626103-6020-035
- Product Type
- Angle
- Length (L)
- 7.75 mm
- Angle 1 (W1)
- 35.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 4.0 mm
- Application
- Angle
- Ø Body (DG)
- 5.0 mm
- Weight
- 0.82 g
- Connection Type Out
- M3 XXT
$ 130.00
626107-6022-202
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 90.0 °
- Angle 2 (W2)
- 15.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
$ 240.00
Inquire on Delivery
Live Chat Now
626107-6023-028
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 65.0 °
- Angle 2 (W2)
- - 65.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
$ 170.00
Inquire on Delivery
Live Chat Now
626105-6020-040
- Product Type
- Angle
- Length (L)
- 15.0 mm
- Length 1 (L1)
- 15.0 mm
- Angle 1 (W1)
- 40.0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12.0
- Weight
- 11.0 g
- Connection Type Out
- M5
$ 170.00
Inquire on Delivery
Live Chat Now
626105-6020-030
- Product Type
- Angle
- Length (L)
- 15.0 mm
- Length 1 (L1)
- 15.0 mm
- Angle 1 (W1)
- 30.0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12.0
- Weight
- 11.0 g
- Connection Type Out
- M5
$ 170.00
626107-6022-045
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 45.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
$ 240.00
Inquire on Delivery
Live Chat Now
626107-6021-045
- Product Type
- Angle
- Length (L)
- 25.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 45.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 17.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 17.0 g
$ 210.00
Inquire on Delivery
Live Chat Now
626103-6110-005
- Product Type
- Screw
- Length (L)
- 8.0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 4.0 mm
$ 20.00
626105-6280-010
- Product Type
- Angle
- Length (L)
- 30.5 mm
- Angle 1 (W1)
- 90.0 °
- Connection Type
- M5
- Measurement Length (ML)
- 25.0 mm
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.0 g
- Connection Type Out
- M5
$ 140.00
626103-6180-011
- Product Type
- Rotary Elements
- Length (L)
- 4.0 mm
- Connection Type
- M3 XXT
- Application
- Connect
- Ø Body (DG)
- 5.0 mm
- Weight
- 1.0 g
$ 50.00
626105-6280-040
- Product Type
- Rotary Elements
- Length (L)
- 40.0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.0 g
- Connection Type Out
- M5
$ 220.00
626107-6022-060
- Product Type
- Angle
- Length (L)
- 43.0 mm
- Angle 1 (W1)
- 0.0 °
- Angle 2 (W2)
- 60.0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35.0 mm
- Application
- Angle
- Ø Body (DG)
- 20.0 mm
- Weight
- 24.0 g
$ 270.00
Inquire on Delivery
Live Chat Now
626105-6280-060
- Product Type
- Star Element
- Length (L)
- 25.0 mm
- Angle 1 (W1)
- 90.0 °
- Material
- Titanium
- Connection Type
- M5
- Measurement Length (ML)
- 20.0 mm
- Application
- Connect
- Ø Body (DG)
- 11.0 mm
- Width (B)
- 13.0
- Weight
- 10.0 g
$ 250.00
Inquire on Delivery
Live Chat Now
626107-6020-505
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 16.7 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.5 g
- Connection Type Out
- M5
$ 120.00
Inquire on Delivery
Live Chat Now
626107-6023-020
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 49.0 °
- Angle 2 (W2)
- - 49.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
$ 170.00
Inquire on Delivery
Live Chat Now
602030-8382-000
- Product Type
- Star Element
- Length (L)
- 11.5 mm
- Connection Type
- M3
- Application
- Connect
- Ø Body (DG)
- 4.0 mm
- Width (B)
- 12.0
- Weight
- 4.0 g
$ 70.00
602030-9104-000
- Product Type
- Star Element
- Length (L)
- 9.0 mm
- Material
- Stainl. St.
- Connection Type
- M2
- Application
- Connect
- Ø Body (DG)
- 10.5 mm
- Weight
- 3.9 g
- Connection Type Out
- M2
$ 90.00
Inquire on Delivery
Live Chat Now
626119-0001-019
- Product Type
- Screw
- Connection Type
- M5
- Application
- Connect
$ 20.00
626107-6020-030
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 30.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 9.5 g
- Connection Type Out
- M5
$ 140.00
626107-6023-030
- Product Type
- Angle
- Length (L)
- 16.0 mm
- Angle 1 (W1)
- 52.0 °
- Angle 2 (W2)
- - 18.0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10.0 mm
- Application
- Angle
- Ø Body (DG)
- 11.0 mm
- Weight
- 16.5 g
$ 170.00
Inquire on Delivery
Live Chat Now
626105-6020-065
- Product Type
- Angle
- Length (L)
- 15.0 mm
- Length 1 (L1)
- 15.0 mm
- Angle 1 (W1)
- 65.0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12.0
- Weight
- 11.0 g
- Connection Type Out
- M5
$ 180.00
