M5

Styli with M5 thread are ideally suited for systems using the ZEISS VAST active scanning sensor. Different stylus elements (sphere, disk, etc.) made of different materials are available. In addition to standard ruby and silicon nitride materials, extra-hard diamond styli are available. Carbon fiber shafts ensure particularly precise results when it comes to finding an optimum of stiffness, weight and thermal expansion. M5 styli can also be connected to other threaded systems with the appropriate connecting element.They can also be connected to other threaded systems with the appropriate connecting element.

  • Standard styli
    Standard styli
    Spherical styli with straight and stepped shafts are used for all standard applications.
  • Diamond!Scan®
    Diamond!Scan®
    Diamond and diamond coated stylus for scanning soft aluminium surfaces and hard (abrasive) materials
  • L-styli and -elements
    L-styli and -elements
    L styli for measuring undercuts and lateral bores
  • T-styli and -elements

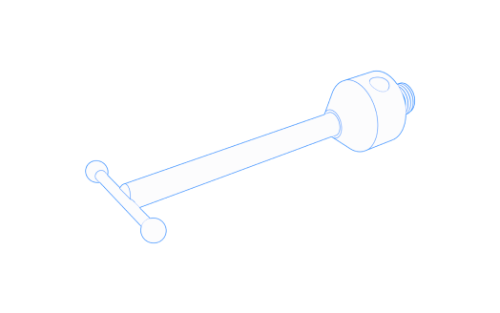

    T-styli and -elements
    T-styli for the measurement of opposite undercuts and bores.
  • Star styli and -elements

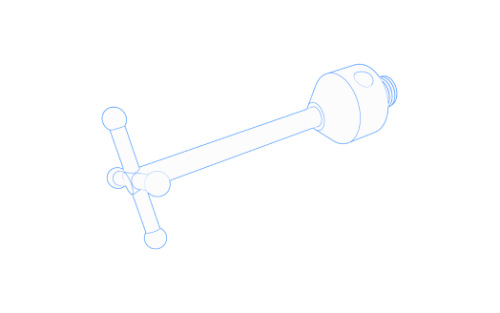

    Star styli and -elements
    Star styli enable measurements in different coordinate directions.
  • Cylinder styli
    Cylinder styli
    Cylinder styli measure two-dimensionally and are used to measure thin sheets narrow workpiece edges.
  • Disc styli
    Disc styli
    Disc styli for measuring undercuts, cut-ins or large boreholes.
  • Discs
    Discs
    Discs are used, among other things, for measuring undercuts, recesses or large bores.
  • Tip styli
    Tip styli
    Tip styli are used for self-centering probing of grooves or very small bores.
  • Hemisphere styli
    Hemisphere styli
    Hemisphere styli are used for large diameters where low weight is needed
  • Cone shaft styli
    Cone shaft styli
    Styli wirth a cone shaft ensure significantly higher rigidity
  • Reference styli
    Reference styli
    Reference styli with maximum accuracy
  • Long threaded styli
    Long threaded styli
    Styli with a longer thread enables the assembly of discs and star styli.
  • Special diameter
    Special diameter
    Styli with special sphere diameter for dedicated applications
  • High precision
    High precision
    High precision styli for high end measuring tasks
