Application
Corner measurement
- ACCT-no. DM47523
- Tip: 2µm R, 60° cone, diamond
Details
- Application
- Tactile
- Product Type
- Surface Stylus
- Stylus Type
- L-Stylus angled
- Stylus Tip Material
- Diamond
- Stylus Tip Geometry
- Pointer

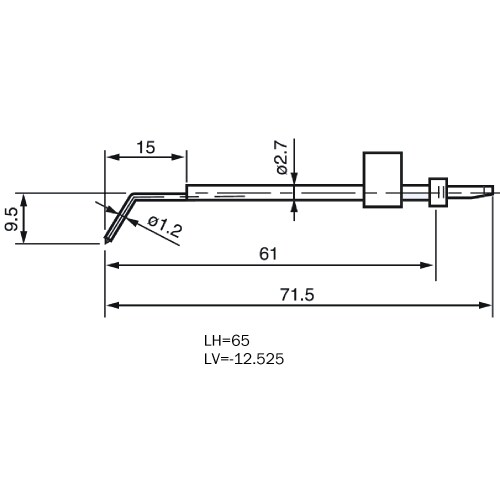

- Length (L)
- 71.5 mm
- Measurement Length (ML)
- 61.0 mm
- 2nd Measurement Length (MLE)
- 3.8 mm
- LH
- 65.0 mm
- LV
- - 12.525 mm
- Shaft Material
- Steel
- Ø Shaft (DS)
- 2.7 mm
- 2nd Ø Shaft (DSE)
- 1.2 mm
- Width (B)
- 9.5 mm
- Angle 1 (W1)
- 55.0 °
- Angle 2 (W2)
- 60.0 °
ACCT-no. DM47523
