L-shape

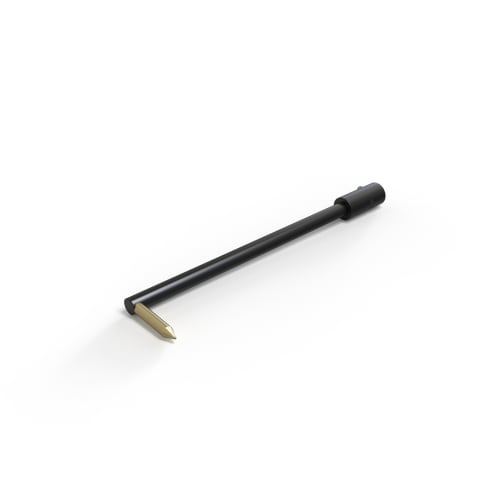

L-Stylus/Rondcom, ML58.2, MLE10, R0.25/55°
000000-1100-808
Application
L-shaped styli Application: Grooves
- ACCT-no. EM46000-S304

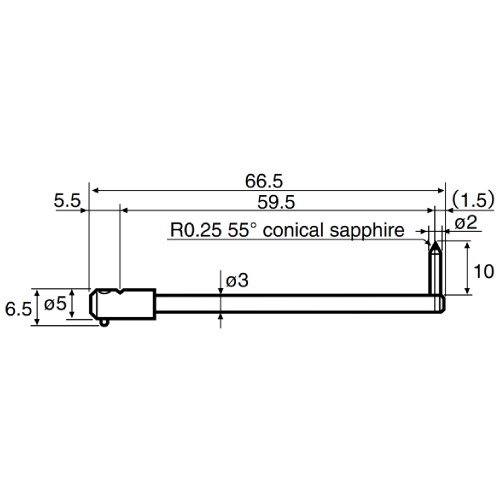

- Tip: R=0.25 mm, 55° conical, saphire
- L-type, B=10 mm
Details
- Application
- Tactile
- Product Type
- Form Stylus
- Stylus Type
- L-Stylus
- Connection Type
- RONDCOM LJ type
- Stylus Tip Material
- Sapphire

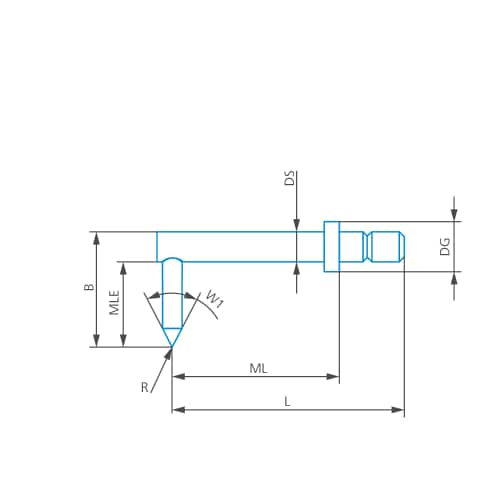

- Length (L)
- 62.3 mm
- Measurement Length (ML)
- 54.3 mm
- 2nd Measurement Length (MLE)
- 10.0 mm
- Ø Shaft (DS)
- 3.0 mm
- 2nd Ø Shaft (DSE)
- 2.0 mm
- Ø Body (DG)
- 5.0 mm
- Width (B)
- 13.0 mm
- Angle 1 (W1)
- 55.0 °
ACCT-no. EM46000-S304
