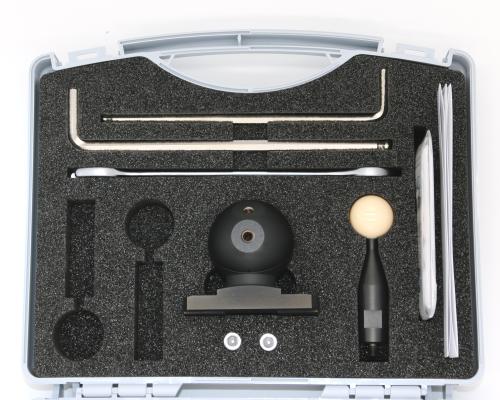

Complete reference sphere kit, DK 25, 105 mm, M6 base product photo Complete reference sphere kit, DK 25, 105 mm, M6 base product photo Back View S

Complete Reference Sphere Kits

Complete reference sphere kit, DK 25, 105 mm, M6 base

600332-9486-000
$ 985.53Sales tax not included
pcs
Product Type
Reference Set
Length (L)
105.0 mm
Ø Sphere (DK)
25.0 mm
Stylus Tip Material
Ceramic
Material
Stainl. St.
Application
Tactile

Reference Sphere Holder (RSH) for O-INSPECT

  • lenght: 105 mm
  • connection thread: M6

Reference Sphere

  • diameter sphere: DK = 25 mm
  • diameter shaft: DS = 73 mm
  • diameter base element: DG = 18 mm
  • length: L = 74 mm
  • connection thread: M6
  • material of sphere: ceramic
  • Surface porosity: less than µ20
  • Sphericity: less than µ0.13

Includes carry case and tools Includes calibraton certificate
