Application

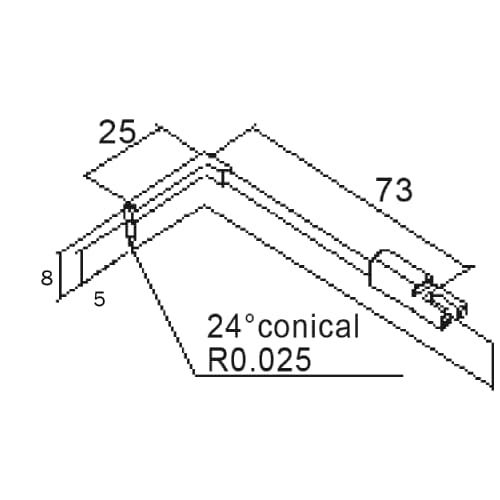

Helix surface Offset (cone)
- ACCT-no. DM83532
- S-NEX*4* DX2/SD2 / S-NEX*3*DX2/SD2 / S-NEX*4* / S-NEX*3*
- Tip: 25µm R. 24° cone, carbide
Details
- Application
- Tactile
- Product Type
- Contour Stylus
- Length (L)
- 73.0 mm
- Measurement Length (ML)
- 58.0 mm
- 2nd Measurement Length (MLE)
- 5.0 mm
- Length 1 (L1)
- 25.0 mm
- Ø Shaft (DS)
- 3.0 mm
- Width (B)
- 8.0 mm
- Angle 1 (W1)
- 24.0 °
ACCT-no. DM83532
