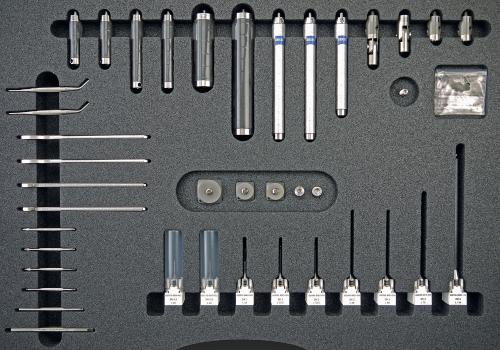

Stylus Kit, M5, 41 pcs
This product bundle contains
- Product Type
- Kit
- Connection Type
- M5
- Application
- Tactile
The stylus kit contains an extended equipment of various styli with tungsten carbide shaft and ruby ball, REACH CFX 1 and REACH CFX 3 extensions with various diameters, connection elements and tooling.
2x 600341-8261-000 stylus extension, M5, REACH CFX 1, DGE11, LE40
2x 600341-8262-000 stylus extension, M5, REACH CFX 1, DGE11, LE60
1x 600341-8424-000 stylus extension, M5, REACH CFX 1, DGE20, LE60
1x 600341-8422-000 stylus extension, M5, REACH CFX 1, DGE20, LE100
2x 626107-1100-100 stylus extension, M5, REACH CFX 3, DGE11, LE100
1x 626107-1080-100 stylus extension, M5, REACH CFX 3, DGE11, LE80
1x 626105-6280-040 rotary-knuckle-joint, M5, titanium, DG11, L40
1x 600342-9002-000 knuckle joint, M5, titanium, DG11, L30 with screw
2x 626105-6280-020 rotary joint, M5, titanium, DG11, L20
1x 626119-0001-019 set of screws for cone adapter, M3 (10 pcs.)
2x 602030-0222-000 pin wrench, DG5, DS2,9, L70 2x 626109-0013-000 hook wrench, DG20
2x 626109-0012-000 hook wrench, DG11
4x 626109-0035-000 torx wrench T6, angled, steel
1x 602030-0021-000 hex wrench DIN 911, BSW 2,5
1x 000000-0015-248 hex wrench DIN 911, BSW 4
1x 600341-8002-000 cube, M5, titanium, B20
2x 600341-8361-000 cube, M5, titanium, B20
1x 626109-0016-000 screw for cube, M5, Inox, L20, ML20
1x 626109-0015-000 screw for cube, M5, Inox, L20, ML15
2x 626115-0050-022 stylus with thread, M5, shouldered, tungsten carbide, ruby, DK0,5, L22
1x 602030-8061-000 stylus with thread, M5, shouldered, tungsten carbide, ruby, DK1, L32
2x 600342-8020-000 stylus with thread, M5, tungsten carbide, ruby DK3, L33,5
2x 600342-8021-000 stylus with thread, M5, tungsten carbide, ruby, DK3, L58
1x 602030-9015-000 stylus with thread, M5, tungsten carbide, ruby DK5, L75
1x 626105-0820-114 stylus with thread, M5, REACH CFX 3, ruby, DK8, L114
