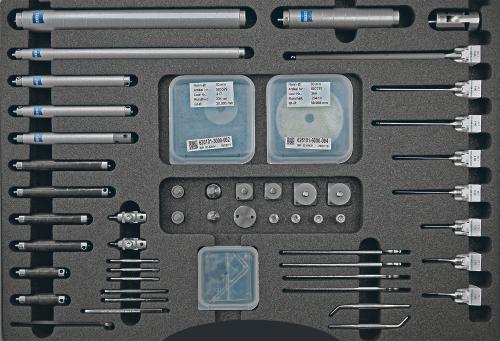

Stylus Kit, M5, 53 pcs product photo Front View L

Stylus Kit, M5, 53 pcs

626115-9120-100
 Inquire on Delivery
 Live Chat Now
$ 3,660.00Sales tax not included
The stylus kit contains a variety of styli with tungsten carbide shaft and ruby balls, as well as disc styli. Furthermore, ZEISS REACH CFX 1 and CFX 3 extensions with different diameters and various cubes and rotary connection elements are included. Suitable tooling completes the assortment. 1x 626107-2200-100 stylus extension, M5, REACH CFX 3, DGE20, LE200 1x 626107-1200-100 stylus extension, M5, REACH CFX 3, DGE11, LE200 2x 626107-1100-100 stylus extension, M5, REACH CFX 3, DGE11, LE100 1x 626107-1100-105 stylus extension with cone receiver, ThermoFit silver, DGE11, LE100 2x 600341-8263-000 stylus extension, M5, REACH CFX 1, DGE11, LE80 2x 600341-8262-000 stylus extension, M5, REACH CFX 1, DGE11, LE60 2x 600341-8261-000 stylus extension, M5, REACH CFX 1, DGE11, LE40 1x 626109-0041-000 two pin spanner DIN 3116A, pin measure Ø2,5 x 3mm, pin distance 13mm 1x 626107-2100-100 stylus extension, M5, REACH CFX 3, DGE20, LE100 1x 626101-6000-004 ball disc alumina ceramic, DK60, B2, adapter DS8 1x 626101-3000-002 ball disc alumina ceramic, DK30, B2, adapter DS8 2x 626107-1015-105 stylus extension with cone receiver, titanium, DGE11, LE15 1x 626107-6280-070 cube M5 with cone receiver TF-Pro, M5, titanium, L17,5, ML10, B15, DG11 2x 600341-8361-000 cube, M5, titanium, B15 2x 600341-8002-000 cube, M5, titanium, B20 2x 626107-6280-040 knuckle joint with cone adapter, titanium, DG11, L19 1x 626107-6280-010 terminal angle with cone adapter, titanium, DG11, L15,5, ML10, B5,5 1x 626105-6271-001 adapter for ball disc with DS8, M5 2x 626109-0015-000 screw for cube, M5, V2A, L20, ML15 2x 626109-0016-000 screw for cube, M5, V2A, L25, ML20 3x 626109-0035-000 torx wrench T6, angled, steel 2x 602030-0021-000 hex wrench DIN 911, BSW2,5 1x 000000-0015-248 hex wrench DIN 911, SW4 2x 626119-0001-019 set of screws for cone adapter, M3 (10 pcs.) 2x 626109-0012-000 hook wrench, Dmr. 11x2,8 mm 2x 626109-0013-000 hook wrench, Dmr. 20x2,8 mm 2x 602030-0222-000 pin wrench, 2,9, DG5, DS2,9, L70 1x 626105-6280-070 knuckle joint, M5, DG20, titanium, L36 1x 626105-0820-150 stylus with thread, M5, REACH CFX 3, ruby, DG11, DK8, DS6, L150, ML137 2x 602030-9015-000 stylus with thread, M5, tungsten carbide, ruby, DG11, DK5, DS3, L75, ML65 2x 600342-8021-000 stylus with thread, M5, tungsten carbide, ruby, DGE11, DK3, DS2, L58, ML48 1x 600342-8020-000 stylus with thread, M5, tungsten carbide, ruby, DG11, DK3, DS2, L33,5, ML23,5 2x 602030-8061-000 stylus with thread, M5, stepped, tungsten carbide, ruby, DG11, DK1, DS1, DSE0,8, L32, ML12, MLE5
product type
Kit
Connection Type
M5
Application
Tactile
